1.5mm maxillofacial Arc plate Titanium Maxillofacial micro plate

Maxillofacial Internal Fixation System

1,Bone plate adopt special customized German ZAPP pure titanium as raw material, with good biocompatibility and more uniform grain size distribution. Don’t affect MRI/CT examination.

2,Bone plate surface adopt anodizing technology, can enhance surface hardness and abrasive resistance.

3,Plate hole has concave design, plate and screw can combine more closely with lower incisures, reduce the soft tissue discomfort.

4,Bone plate’s edge is smooth, reduce the stimulation to soft tissue.

5,Different series products with different colors, convenient for clinician operation (adopt anodizing technology, different thickness of anodized layer will reflect different color).

Maxillofacial Implant Series–Maxillofacial Arc plate

Indication: Frontal part, nasal part, pars orbitalis, pars zygomaticamaxilla region, pediatric craniofacial bone

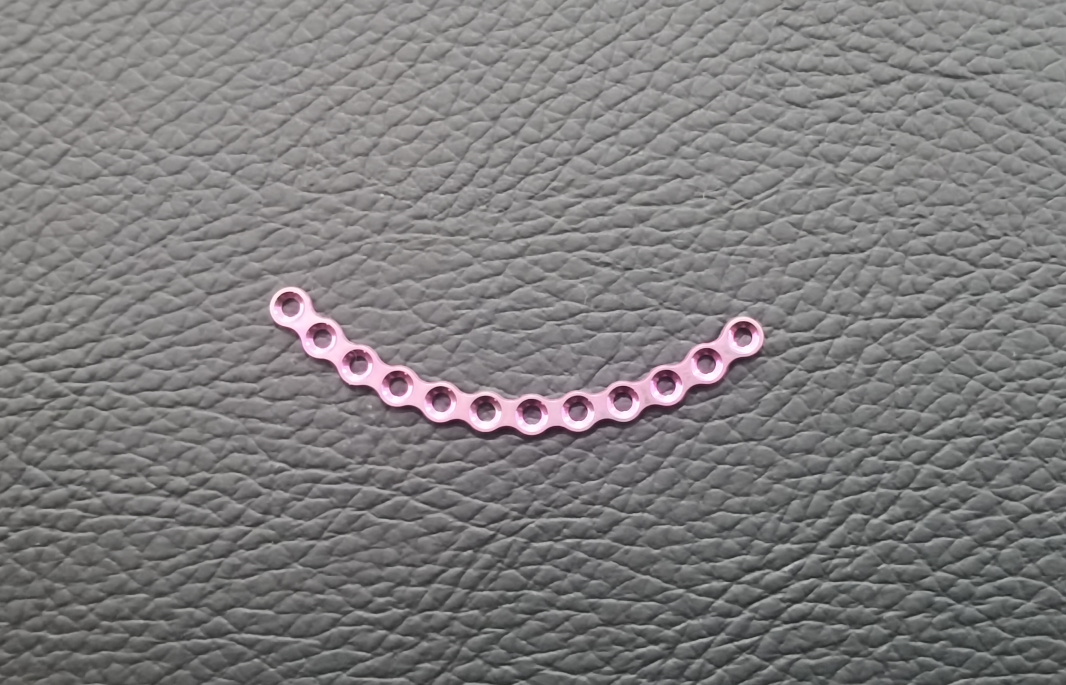

Maxillofacial micro plate Arc plate

Spécifications techniques :

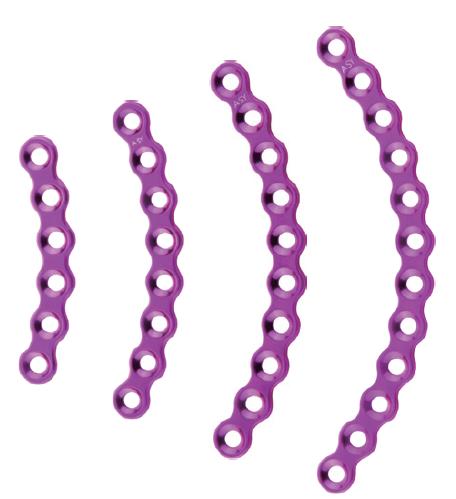

Numéro d'article. Spécification 10.01.01.06013000 6 holes 23mm 10.01.01.08013000 8 holes 30mm 10.01.01.10013000 10 holes 37mm 10.01.01.12013000 12 holes 43mm

The Shuangyang medical plate Advantages：

1.Streamlned Offering Of Plates,Screw sand Accessories

2.Lightweight And Compact

3.Color Coded For Ease Of Use

4.Modular(1.5,2.0,2.4mm maxillofacial set)

5.Screw Length Markers Allow You To customize Your Screw inventory

6.Highly Scalable And Easy To Customize with A Wide Variety Of Plate & Screw configurations

Features & Benefits:

1.Shuangyang Smart Fixation system brings to you the most advanced maxillofacial system comprising of the most enhanced screw retention technology.

2.The Shuangyang maxillofacial kit consists of plates, screws and instrumentation used for fixation of craniofacial, midface and mandibular fractures or correction surgeries.

Titanium Plate：

• Non-reversible bone plates
• Low screw/plate interface
• Optimal balance profile height and strength
• Rounded edges on plates for less irritation to soft tissue
• Medical grade titanium
• Color coding by diameter for easy identification

Vis correspondante :

Medical Screw Advantages：

• An excellent grip on the bone
• Selfdrilling and Selftapping screws
• Self holding screw for Improved pick-up performance
• Improved off-axis stability during insertion
• Lower profile height of screw head
• Improved insertion of self-drilling screws

Instrument correspondant :

medical drill bit φ1.1*8.5*48mm

cross head screw driver: SW0.5*2.8*95mm

poignée d'accouplement rapide droite
